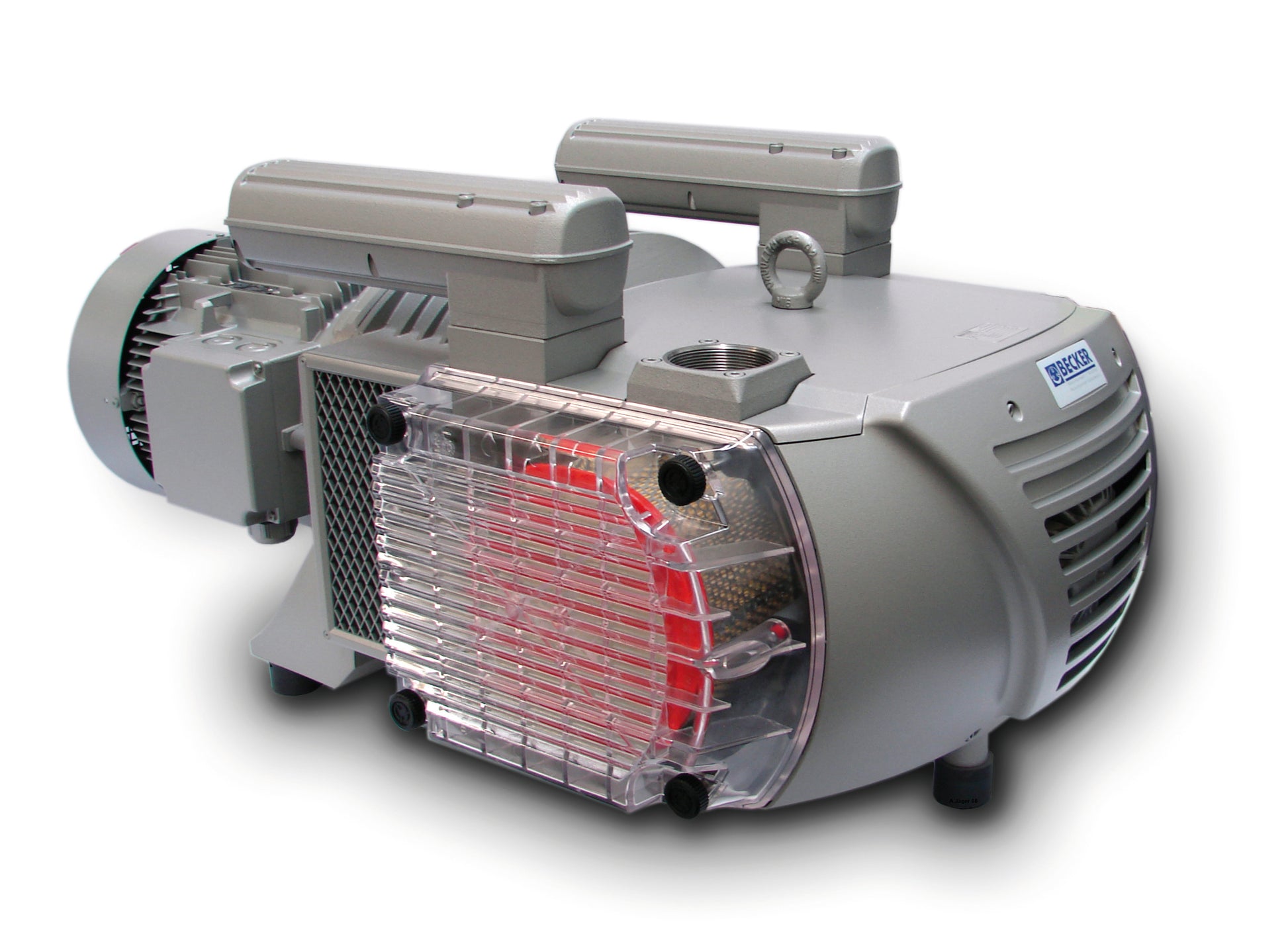

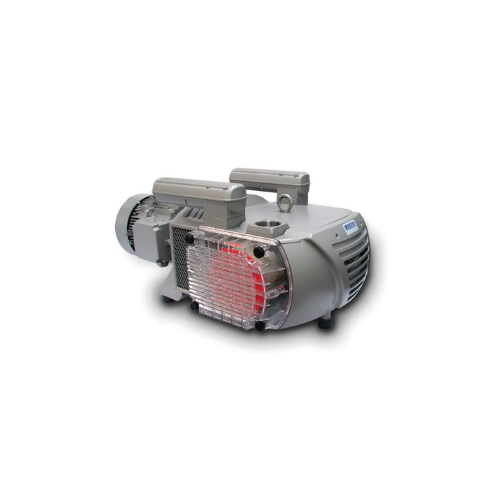

Single Becker Vacuum Pump

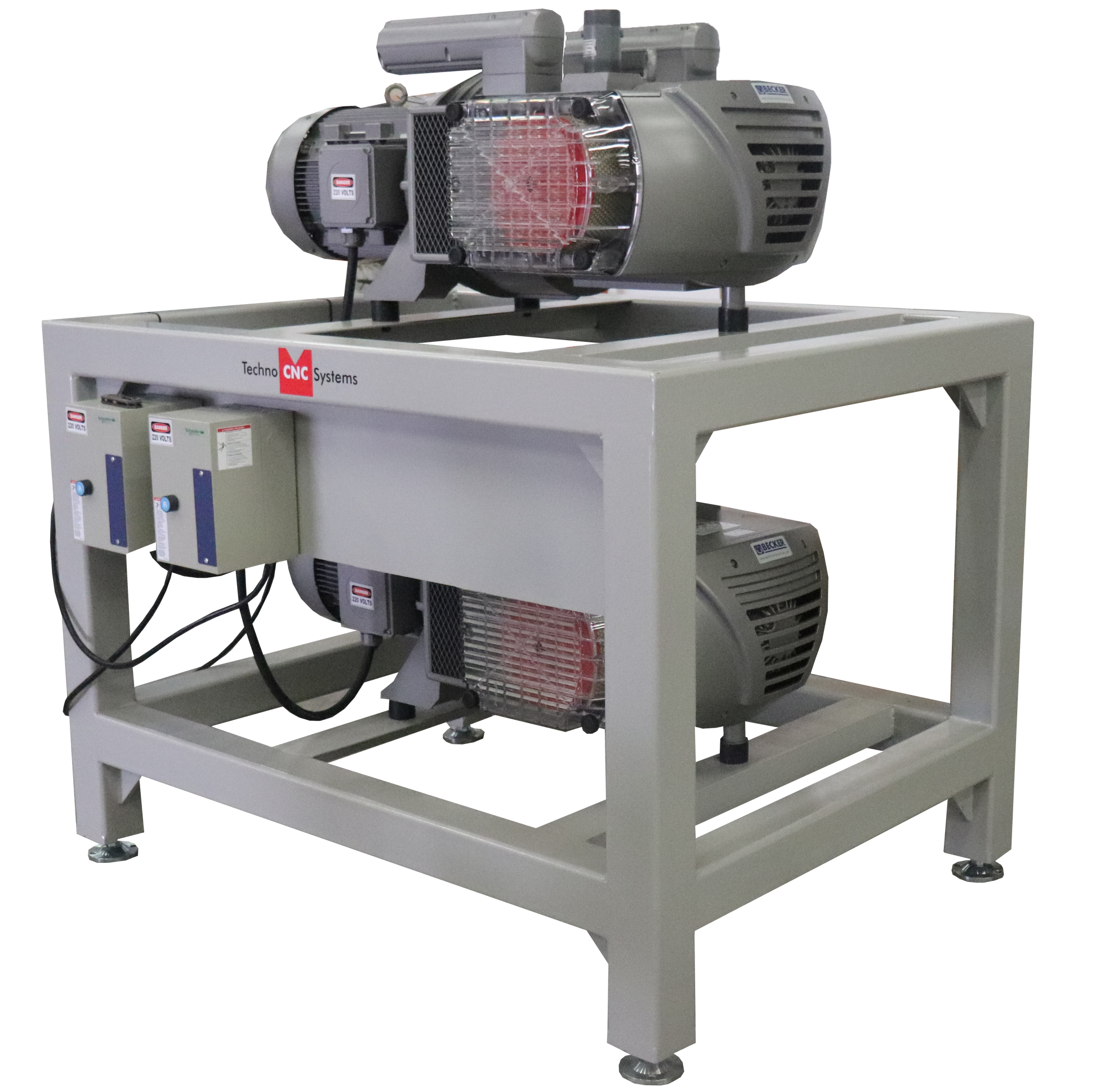

Becker has also designed a full line of multi-pump vacuum systems, called the Advantage-W, which are designed to meet your specific router needs. These systems are perfect for spoil board applications and can be operated incrementally to match your production demand. This means that you run only the pump or pumps needed for your specific application. This saves precious energy and reduces operating costs. Advantage-W systems are available in both Duplex and Triplex models in a space-saving vertical arrangement. Each pump in the system includes its own built-in inlet filter and cyclonic relief valve filter and is connected to an integral manifold which includes a central inlet filter for primary filtration.

As a general industry standard, when matching the right pump to the table size, 5.5 CFM per square foot of surface area is required for nested base or spoil board tables. Pod and Rail tables utilize small suction cups and, therefore, require much less flow and usually use just one size pump

• Less installed horsepower means maximum horsepower efficiency

• Greater hold down force per horsepower

• Low maintenance

• Field serviceable, easy and fast to maintain
